Caracteristicas

Especificaciones

Modelo No.: ZD-ppgi

Solicitud: PPGI

Borde: Borde de la hendidura

Existencias: Existencias

Espesor: 1 mm-30 mm o según sea necesario

Ancho: 10 mm-3000 mm, según sea necesario

Ciclo personalizado: 7-15 días

Color: Color estándar Rojo, Azul, Blanco, Gris, Ral

Superficie: Calentado, galvanizado, prepintado

Tipo de revestimiento: PE/SMP/HDP/PVDF

Recubrimiento de zinc: 30-275G/m2

Servicios de procesamiento: Saldado, perforado, cortado, desenrollado

Producción: 500 toneladas/mes

Tiempo de entrega: Según sea necesario

HS: 7210490000

Paquete de transporte: Exportar paquete estándar/solicitud

Especificación: Según los requisitos del cliente

Marca: - ¿ Qué?

Origen: PORCELANA

Código HS: 7210490000

Capacidad de la fuente: 30000 toneladas/mes

Garantía del producto: Según el entorno de uso

Estándar de productos: Las pruebas de calidad de los productos de ensayo se realizarán en el lugar de ensayo.

Resaltar:

10mm-3000mm Width PPGI Steel Coil

500 Tons/Month Production PPGI Steel Coil

30000 Tons/Month Supply Ability PPGI Steel Coil

Información básica

Lugar de origen: Chnia

Nombre de la marca: Zhengde

Document: Zhengde Metal Product Catal...og.PDF

Pago y Envío Términos

Detalles de empaquetado: Configuración del cliente

Tiempo de entrega: 10 días

Galería

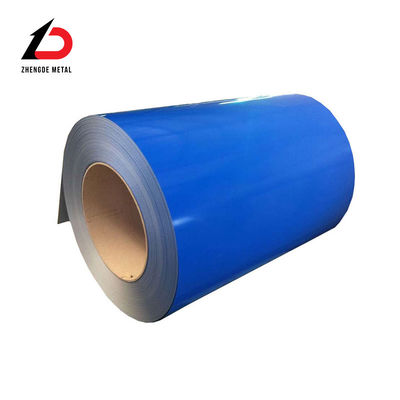

Durable PPGI Steel Coil with 10mm-3000mm Width and 500 Tons/Month Production Capacity for Wide Industrial Applications

Descripción de producto

Durable PPGI Steel Coil - Pre-Painted Galvanized Steel for Industrial and Construction Use

Standard Colors: Red, Blue, White, Grey, RAL Color Factory Supply

PPGI (Pre-Painted Galvanized Iron) is pre-coated steel, also known as coil coated steel or color coated steel, with a hot dip zinc coated steel substrate.

Product Specifications

Category	Standard	Value
Executive standard	National standard	GB/T12754-2019
American Standard/European Standard		ASTM A792M
Cold rolled substrate	Width specification	1200mm
Cold rolled substrate thickness	Including metallized layer	≥0.41mm
Thickness after painting	Label thickness	≥0.46mm (≥0.45mm)
Size deviation	Width tolerance	Upper deviation +4mm, Lower deviation 0
Thickness tolerance		Upper deviation +0.05mm, Lower deviation 0
Yield Strength		>300MPA
Tensile strength		270-500MPA
Elongation after break		More than 20%
Steel coil inner diameter		Standard: 508mm (except for other agreements)

Metal Coating Specifications

Alloy composition: AlZnMg or galvanized AlMg
Total Weight of Plating Both Sides (Outside/Inside): 150g/ (75/75 or 85/65)
Neutral salt spray test: ≥2500 hours surface (without passivation), no red rust
Wound surface (end surface) salt spray test: ≥1200 hours, no red rust

PPGI Paint Specifications

PE coating structure standard (μm): Outside ≥25, Inside ≥7
Pencil hardness: Not less than HB
Specular Gloss of Topcoat: ≥40 degrees
T bend value: 2T
Impact energy: Not less than 9J
Neutral salt spray test: ≥1500h without bubbles
UVB-313: ≥700h

PPGI Use Environment

Humidity: 20% to 90%
Temperature: Min -45°C, Max 43°C
Unit ammonia: <30ppm
Unit carbon dioxide: <7000ppm
Unit oxygen: 21%
Unit hydrogen sulfide: <5ppm

Our Advantages

Complete Range

We offer different types of color steel coils for various PPGI applications, including home appliances, optical materials, decorative materials, building materials, and packaging. The production process for home appliance-grade color steel coils is particularly refined.

Good Performance

Our color coated steel plates combine organic polymers with steel substrates, offering excellent anti-corrosion and decorative properties along with superior formability and processing characteristics.

5S Management

Before production, we implement strict 5S management protocols to ensure clean working environments, proper equipment maintenance, and correct material handling, guaranteeing product quality and worker safety.

Strict Quality Control

We meticulously inspect for all potential defects including surface imperfections, edge quality, coating uniformity, dimensional accuracy, and physical properties.

Applications

PPGI Steel Coil is widely used in construction, home appliances, automotive, and agricultural industries. Common applications include roofing, wall cladding, cold storage facilities, appliance exteriors, automotive body panels, and corrosion-resistant industrial equipment.
